| Model NO. | Product Parameters | |

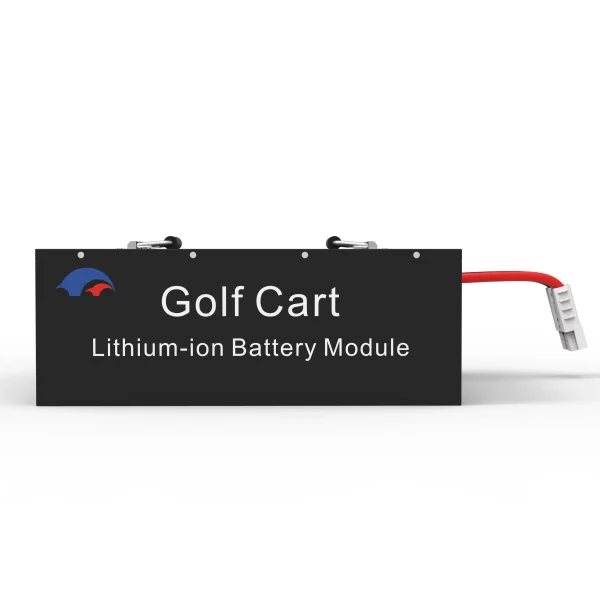

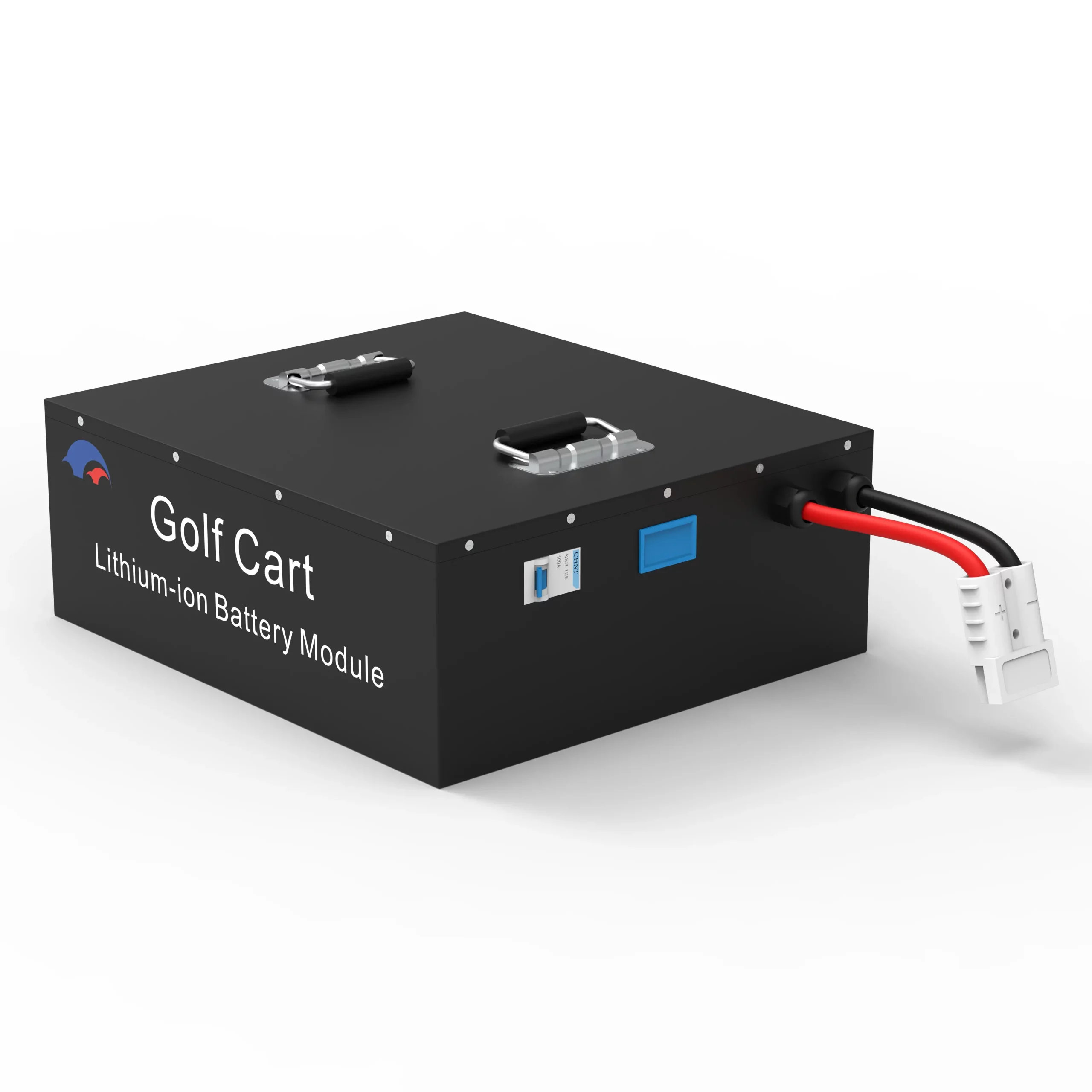

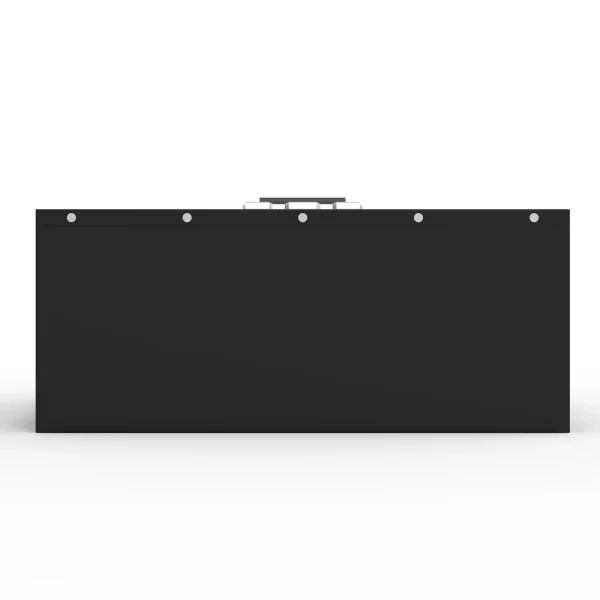

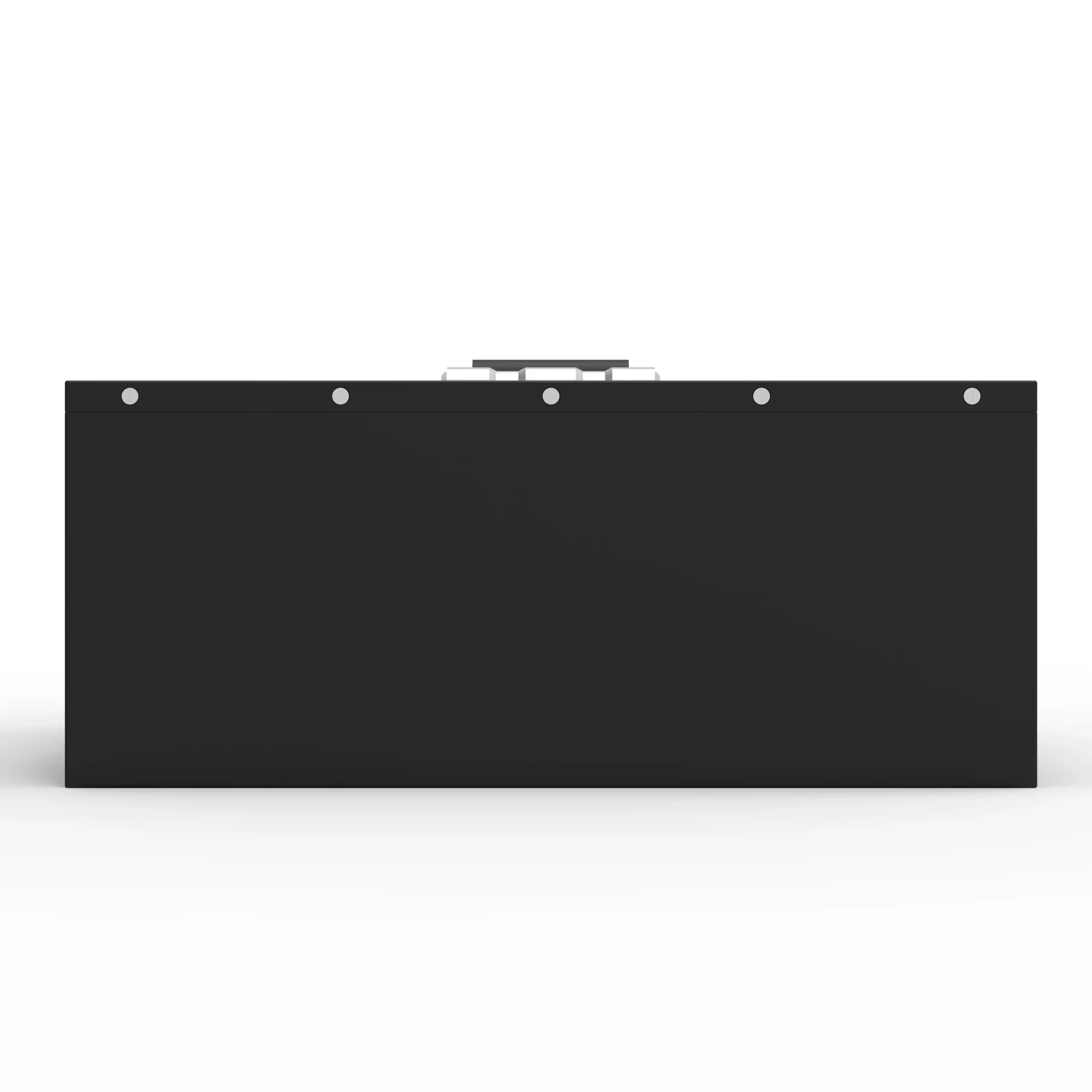

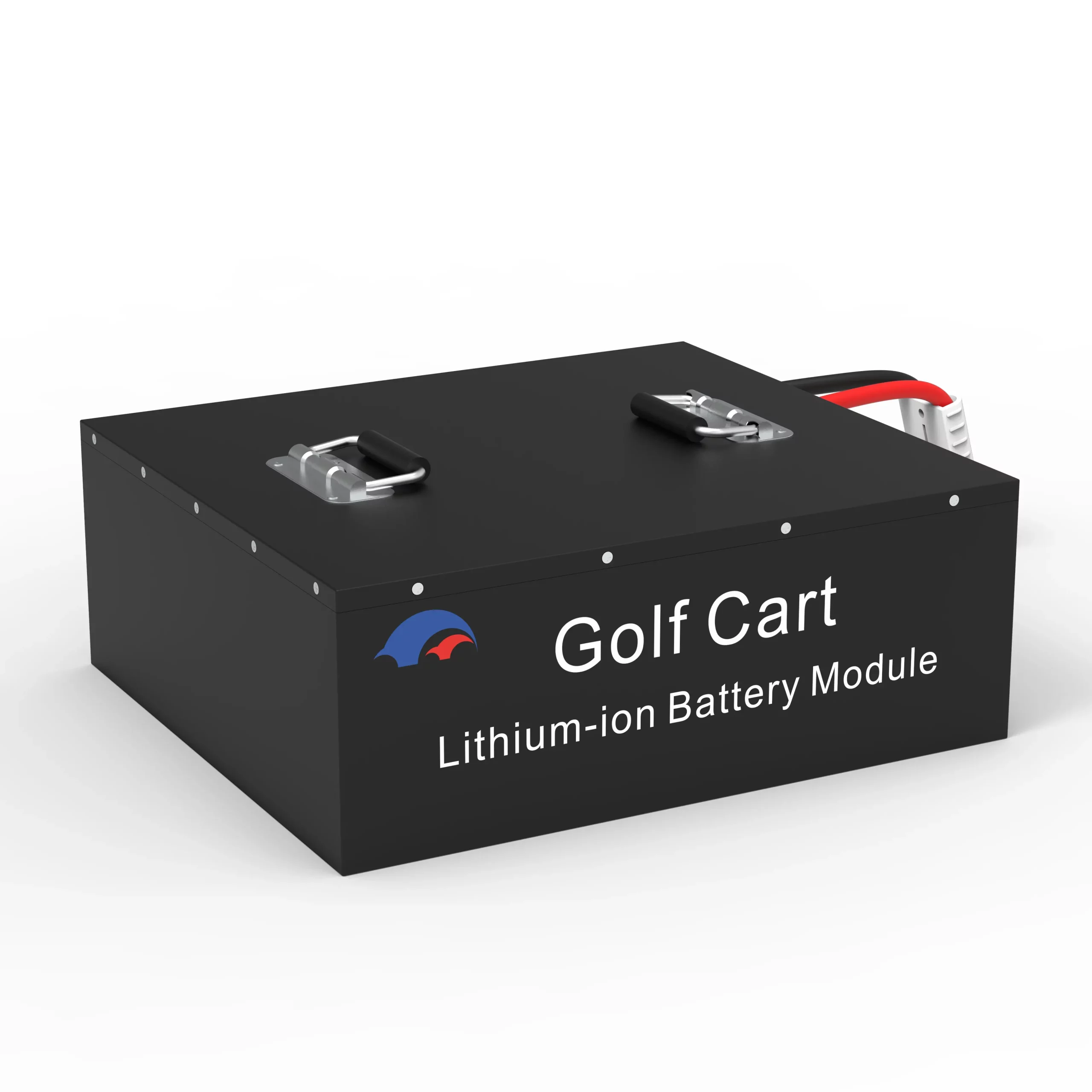

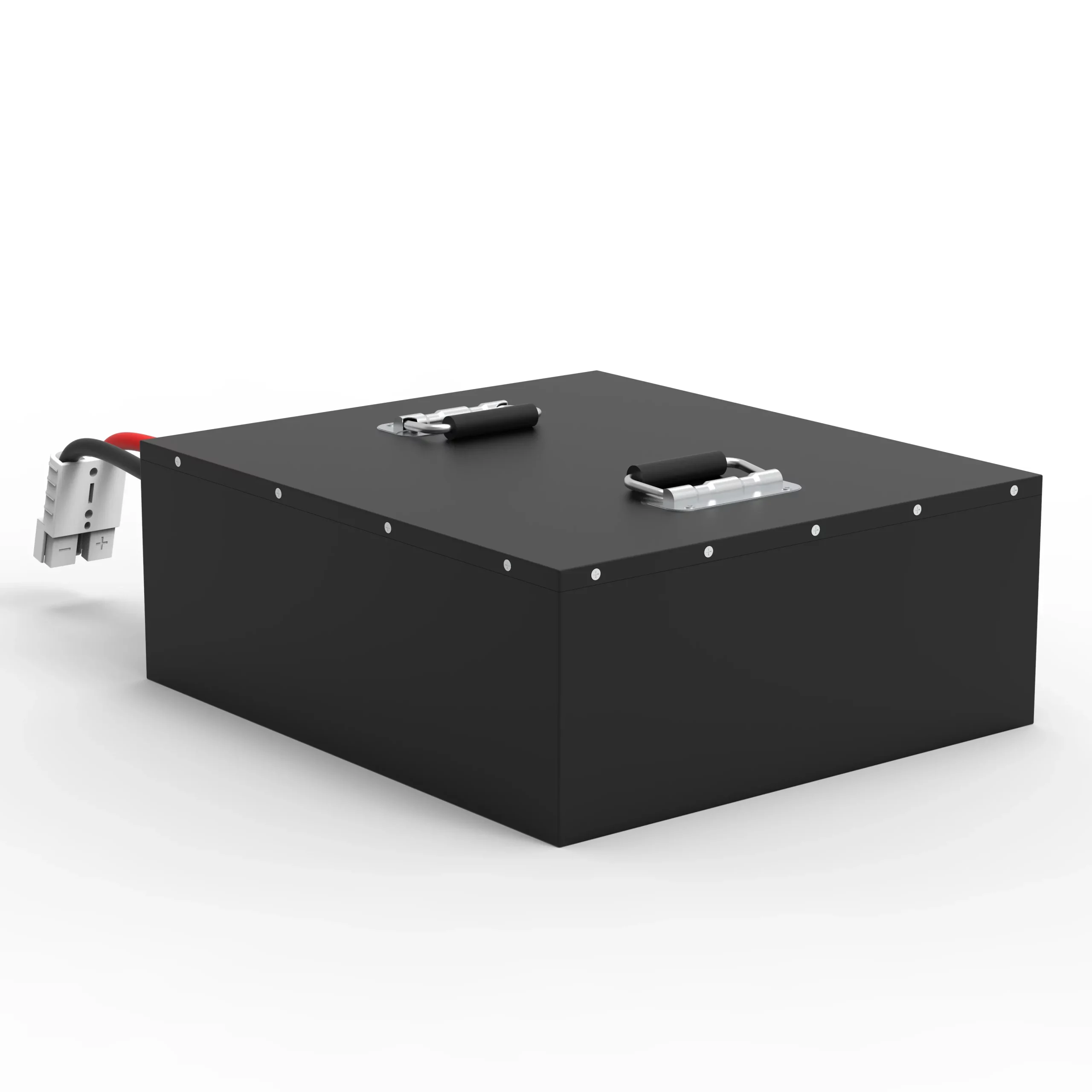

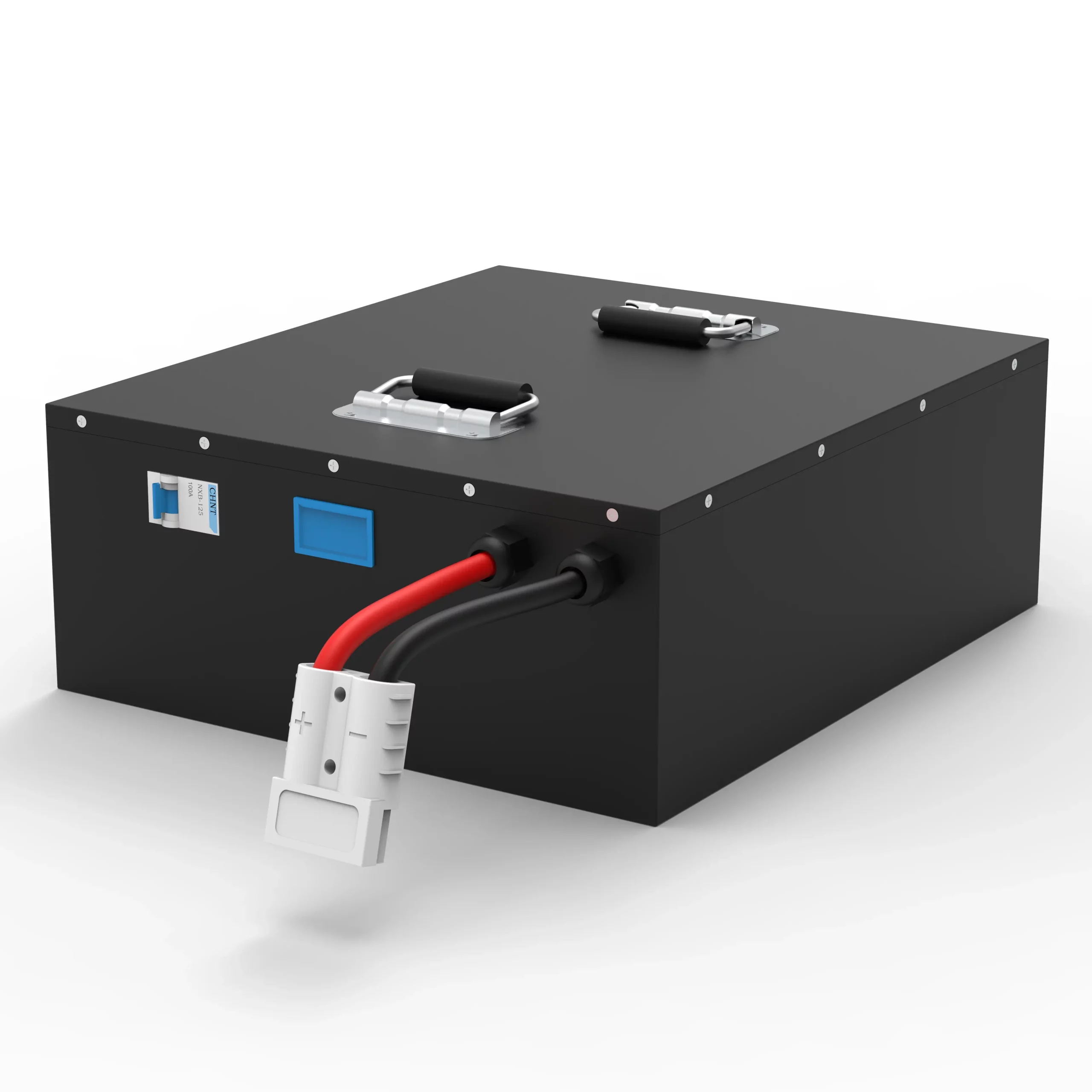

| YY-48100G | Batteries materials：Lithium iron phosphate Series parallel mode (S series, P parallel)：16S1P Nominal voltage：51.2V Nominal capacity:100AH Size（mm）：420*370*155 Weight： 42.7KG Color: Optional Parallel support: Parallel terminals are supported Output port mode：terminal Charging way：CC/CP/VP Charging current：0.2C(standard） Maximum charging current：Max1.2C @25℃ Charge cut-off voltage：58.4V/CELL Discharge way：CC/CP/VP Discharge current：1C Maximum discharge current：Max0.5C @25℃ Discharge cut-off voltage：44.8V According to：LCD Communication interface：RS485/CAN Charging operating temperature：charging:0~+50℃ Discharge operating temperature：discharge:-20~+55℃ Warranty：5 years Scope of application: Golf Carts |
|
