12.8V 150AH Plastic Case LiFePO4 Battery

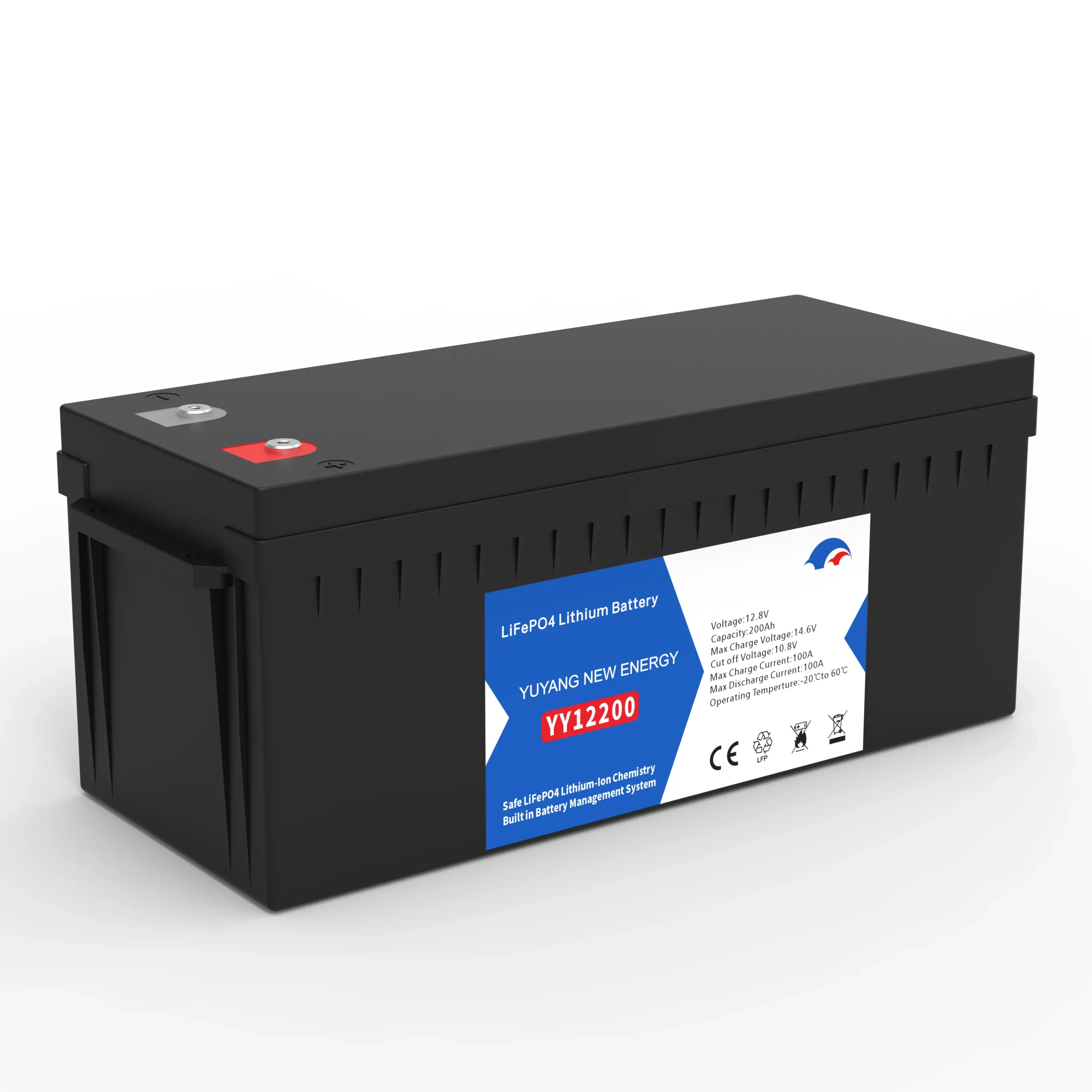

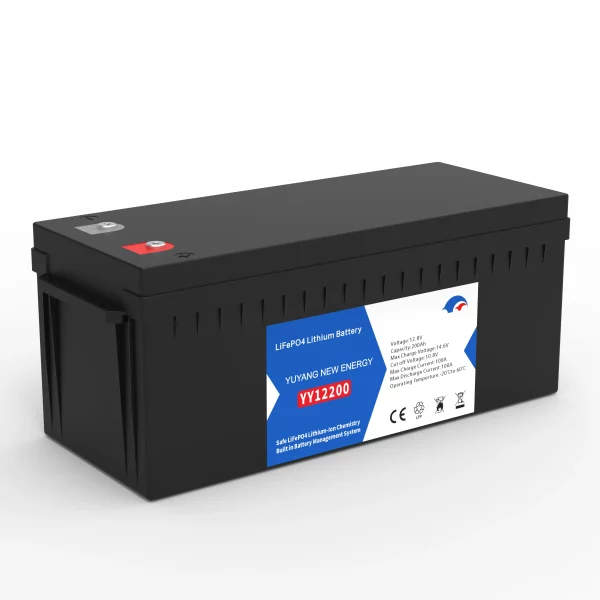

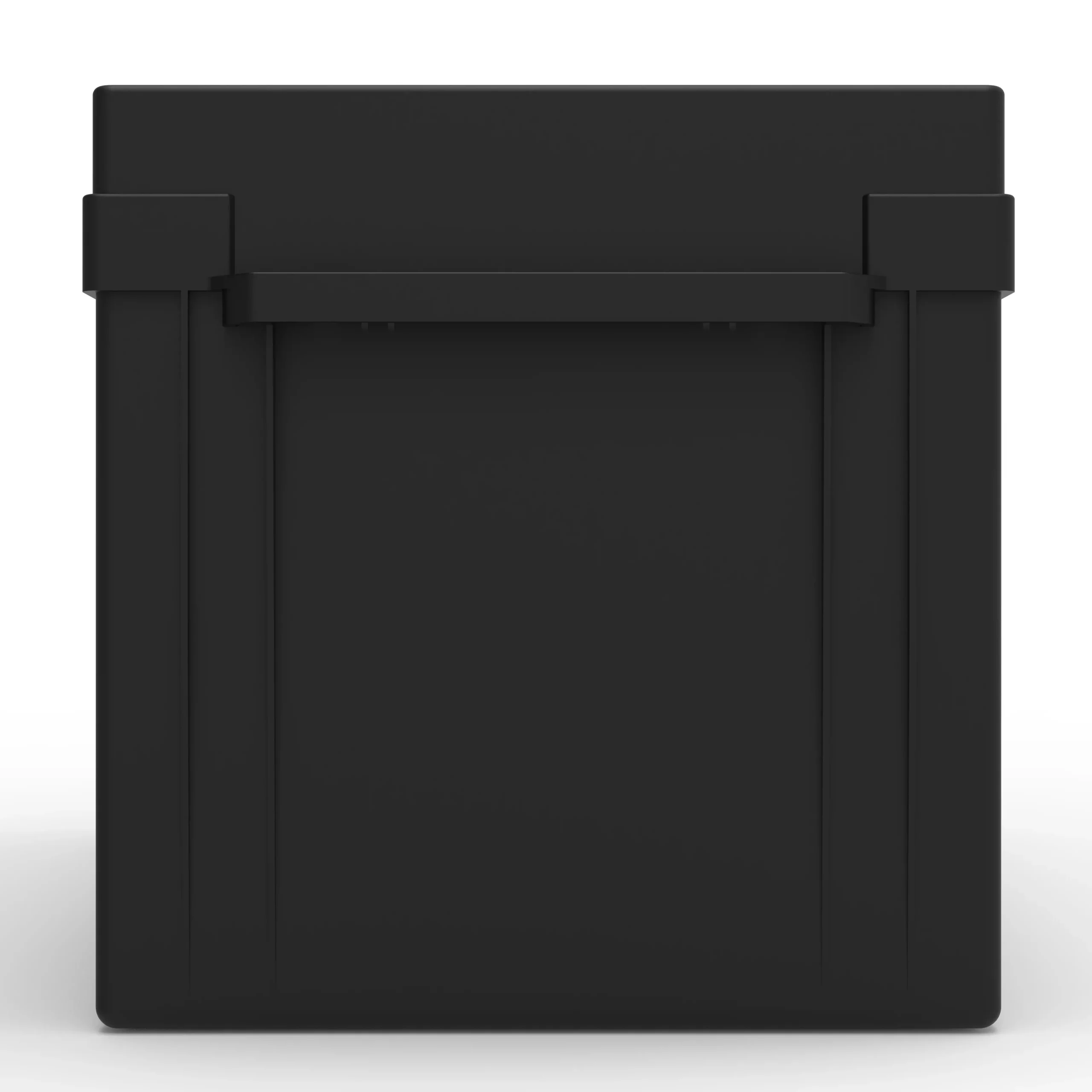

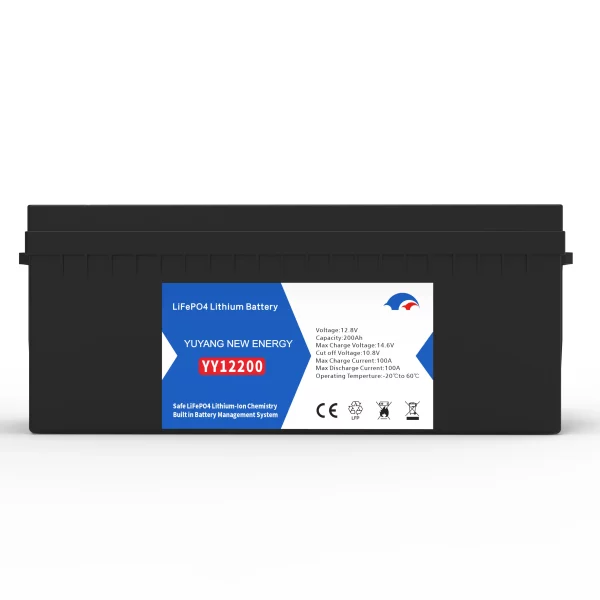

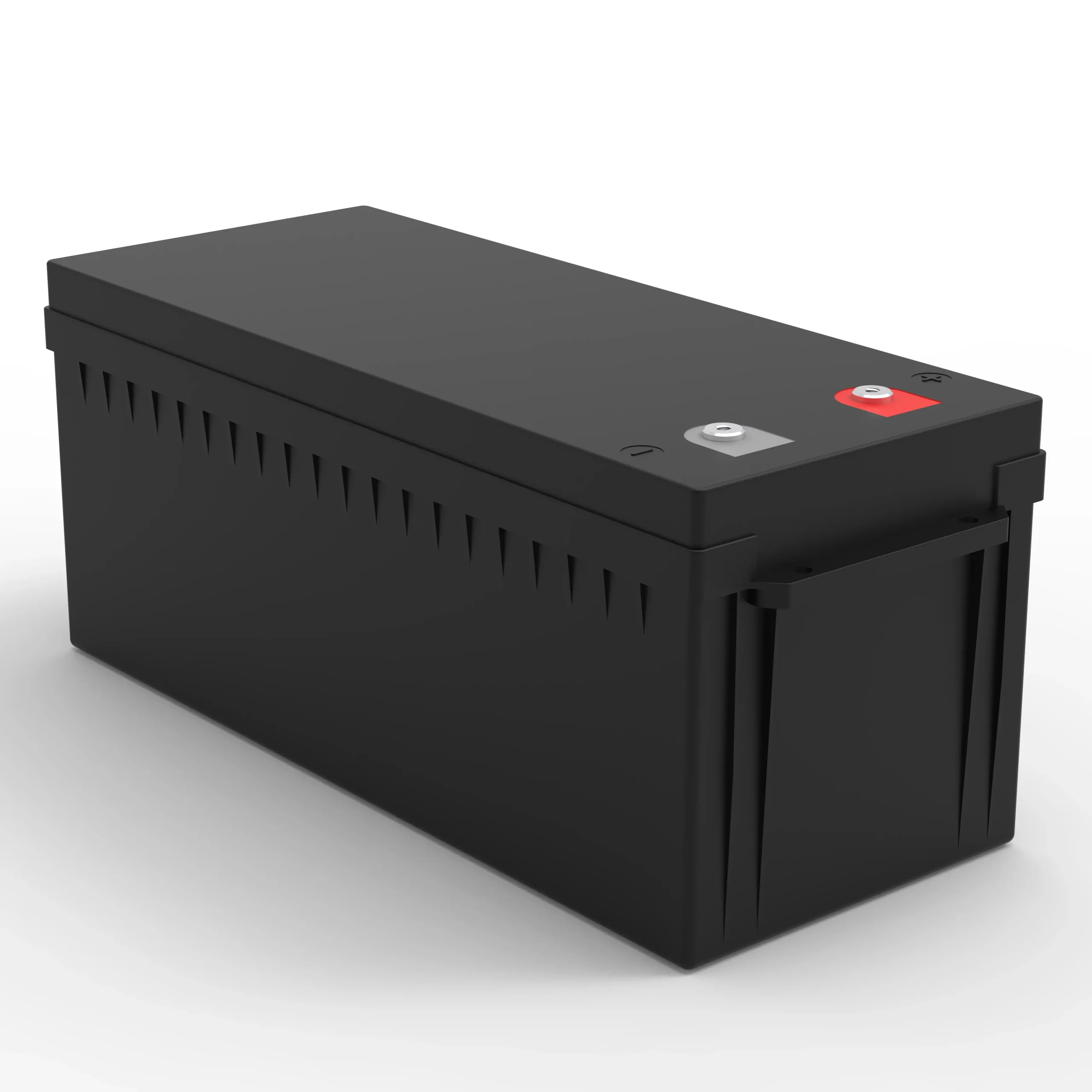

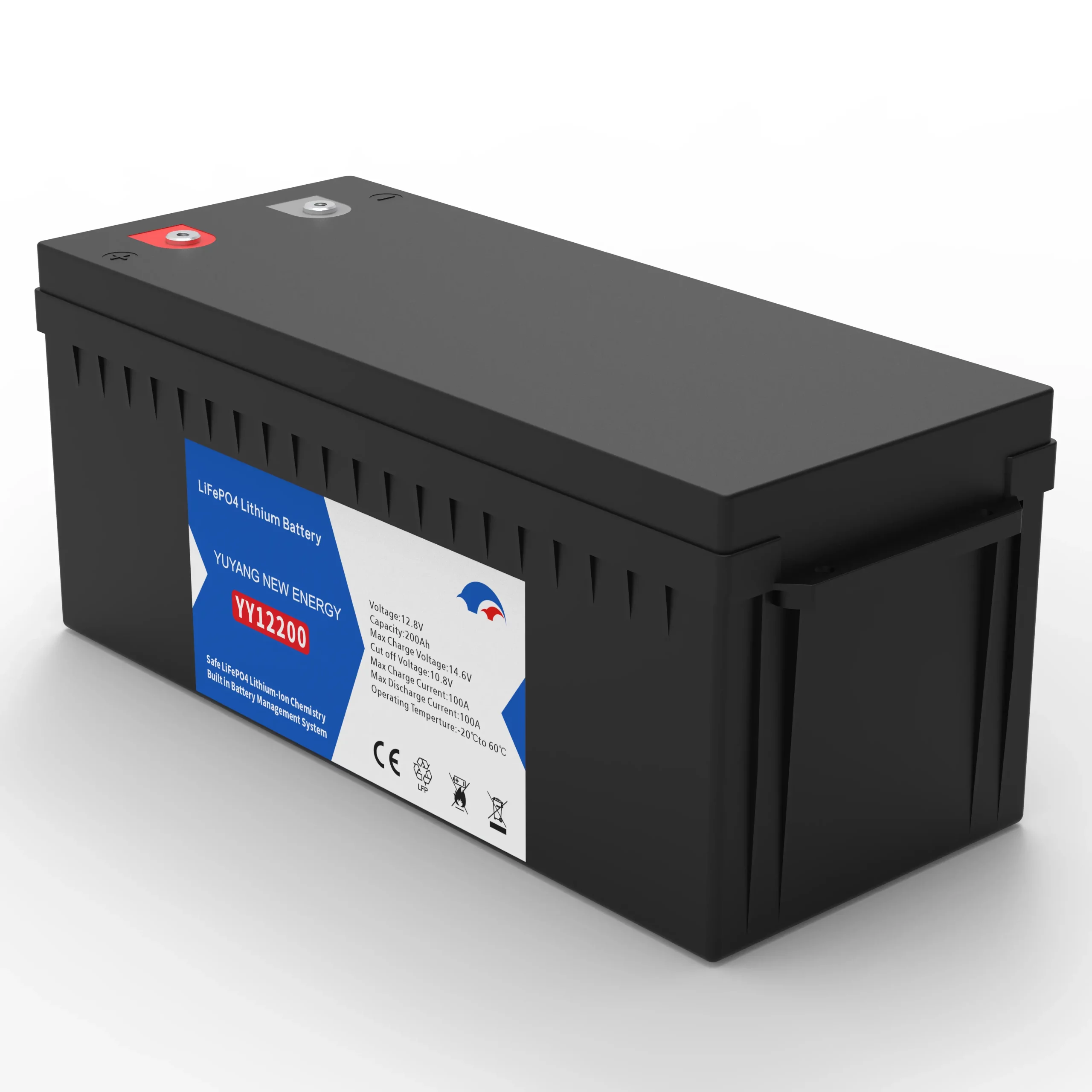

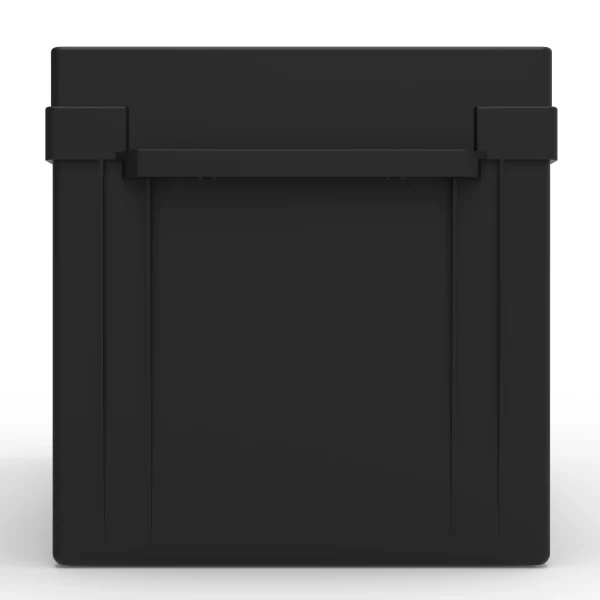

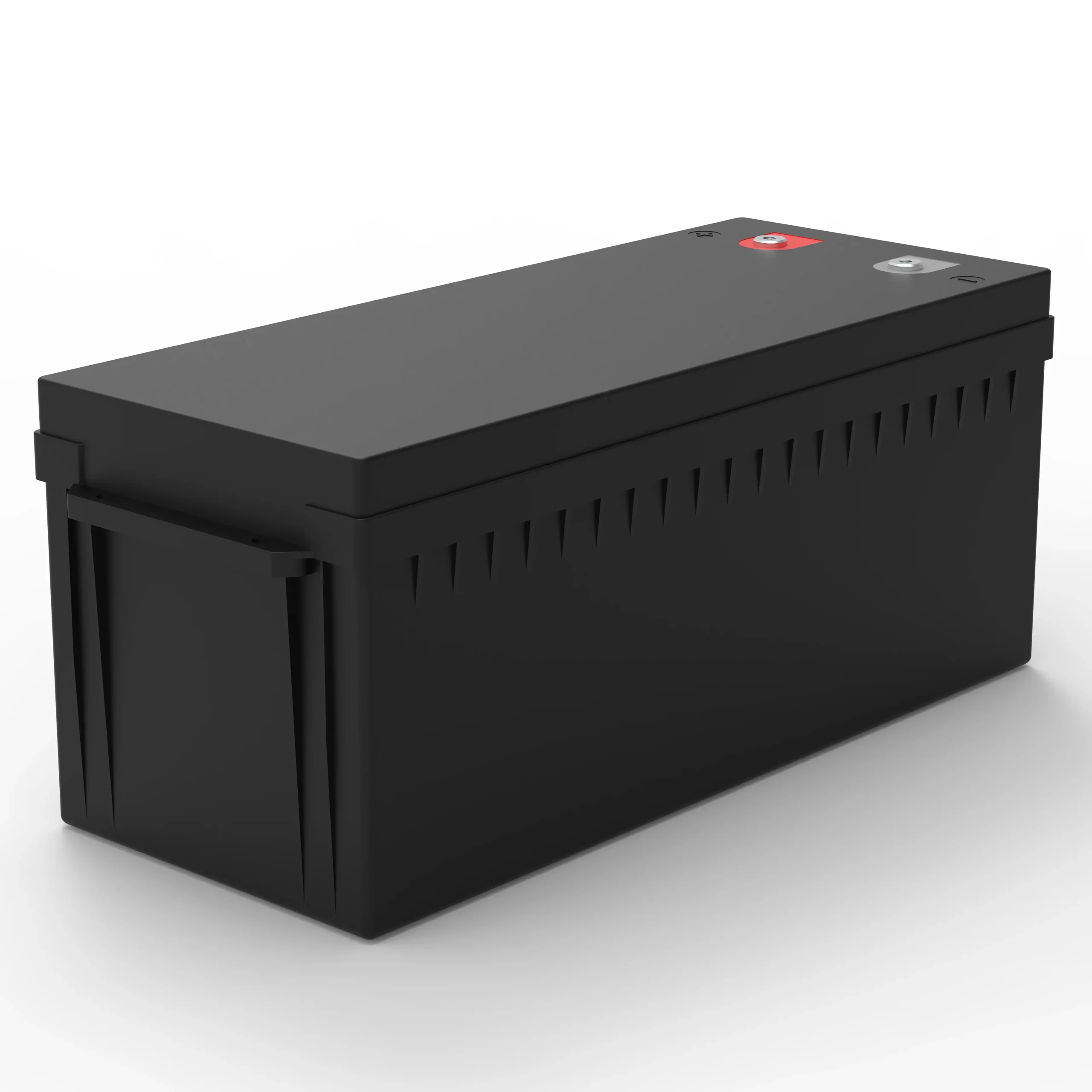

YY12200P 12.8V 200AH 2.56Kwh

Share to:

Description

Model NO. Product Parameters
YY12200P

Batteries materials:Lithium iron phosphate
Series parallel mode (S series, P parallel):4S2P
Nominal voltage:12.8V
Nominal capacity:200Ah
Size(mm):522*240*218
Weight:19.9kg
Color: Optional
Parallel support: Parallel terminals are supported
Output port mode:terminal
Charging way:CC/CP/VP
Charging current:0.2C(standard)
Maximum charging current:Max1.2C @25℃
Charge cut-off voltage:14.6V
Discharge way:CC/CP/VP
Discharge current:0.5C
Maximum discharge current:Max0.5C @25℃
Discharge cut-off voltage:11.2V
According to:LCD
Communication interface:RS485/RS232/CAN
Charging operating temperature:charging:0~+50℃
Discharge operating temperature:discharge:-20~+55℃
Warranty:5 years
Scope of application: hospital, bank data center, enterprise energy storage backup power supply, office, military, base station and other
