48V 100AH Forklift LiFePO4 Battery

YY-48100F 48V 100AH 4.80Kwh

Model NO.	Product Parameters

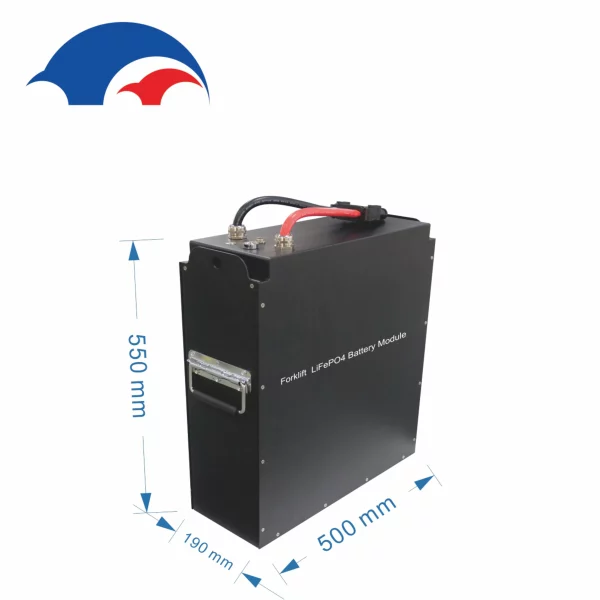

YY-48100F	Batteries materials：Lithium iron phosphate Series parallel mode (S series, P parallel)：16S1P Nominal voltage：51.2V Nominal capacity:100AH Size（mm）：500190550 Weight：50KG Color: Optional Parallel support: Parallel terminals are supported Output port mode：terminal Charging way：CC/CP/VP Charging current：0.2C(standard） Maximum charging current：Max1.2C @25℃ Charge cut-off voltage：58.4V/CELL Discharge way：CC/CP/VP Discharge current：2C Maximum discharge current：Max0.5C @25℃ Discharge cut-off voltage：44.8V According to：LCD Communication interface：RS485/CAN Charging operating temperature：charging:0~+50℃ Discharge operating temperature：discharge:-20~+55℃ Warranty：5 years Scope of application: Forklift
