| Model NO. | Product Parameters | |

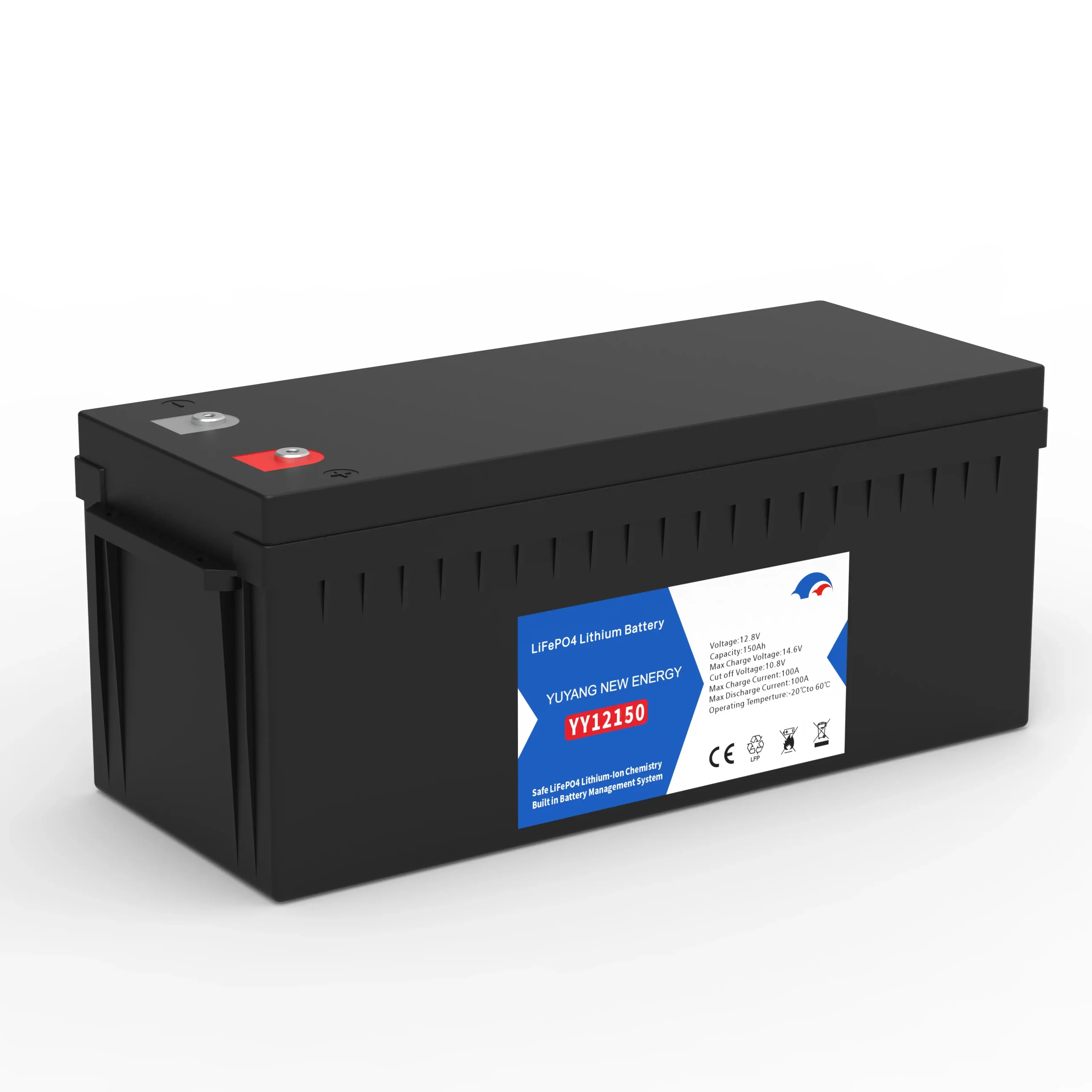

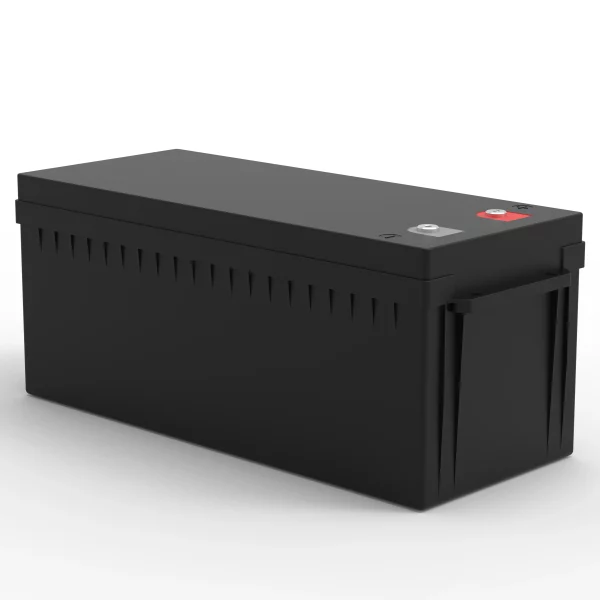

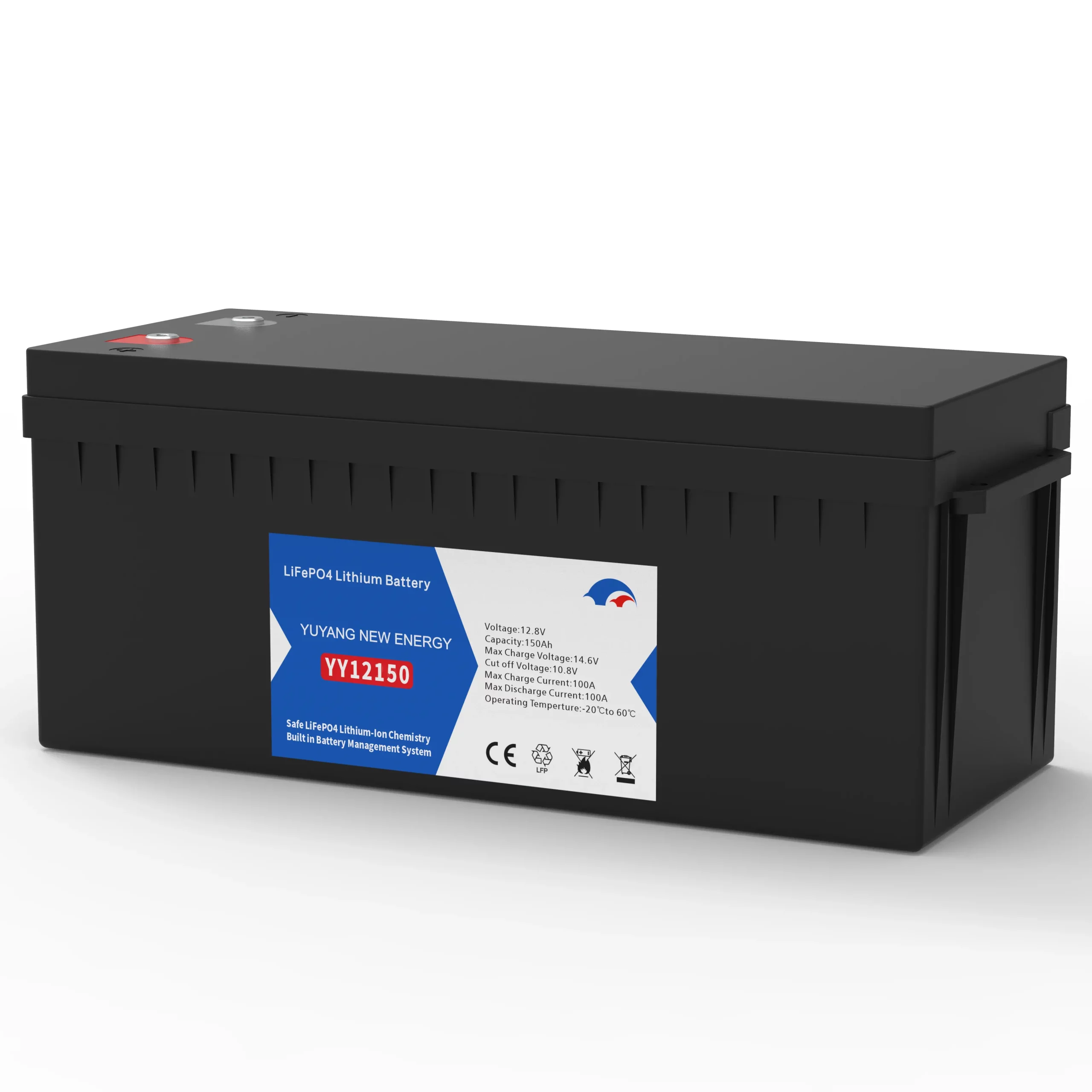

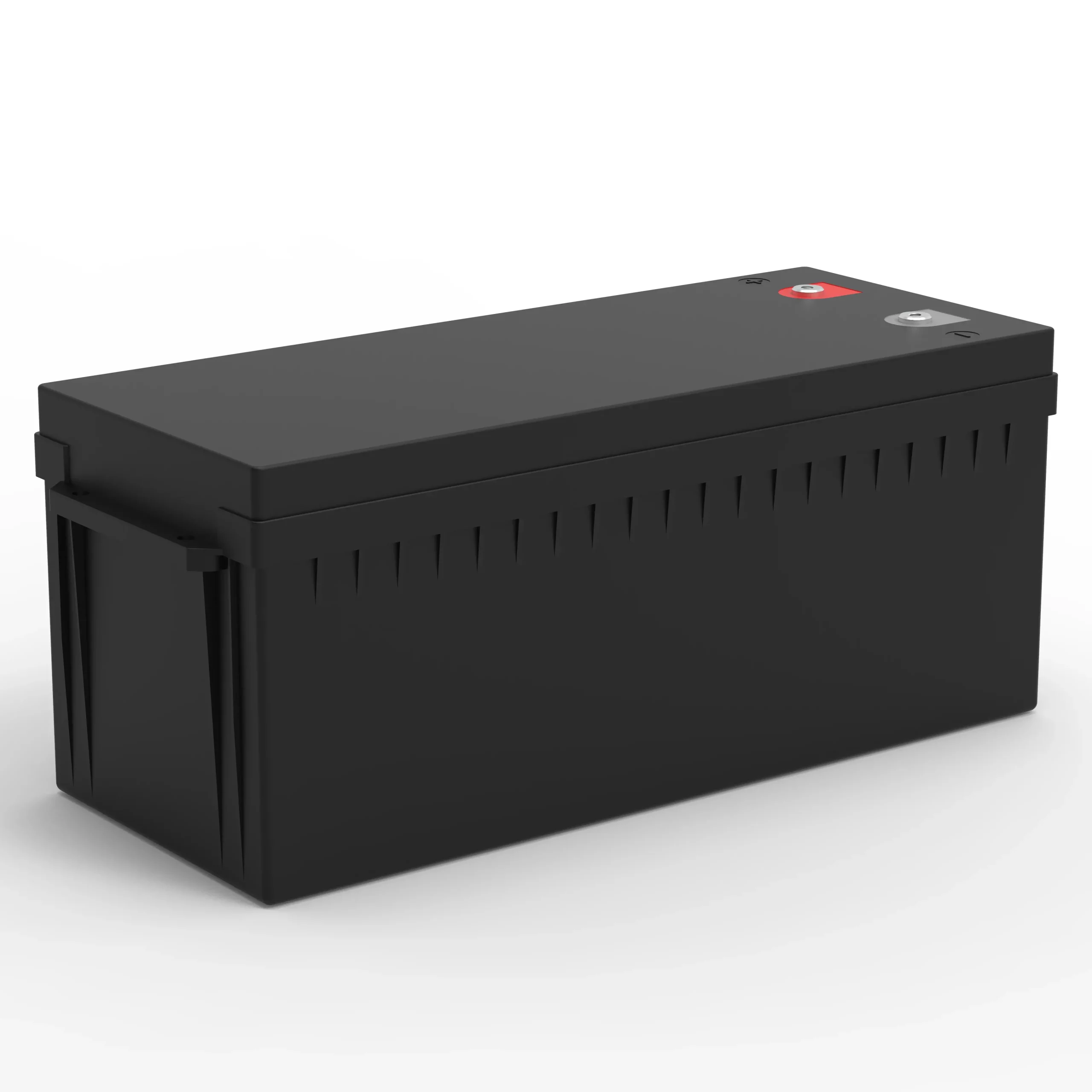

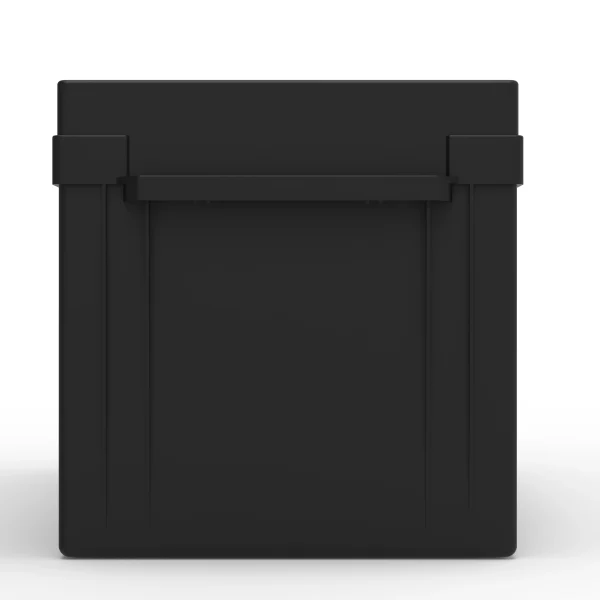

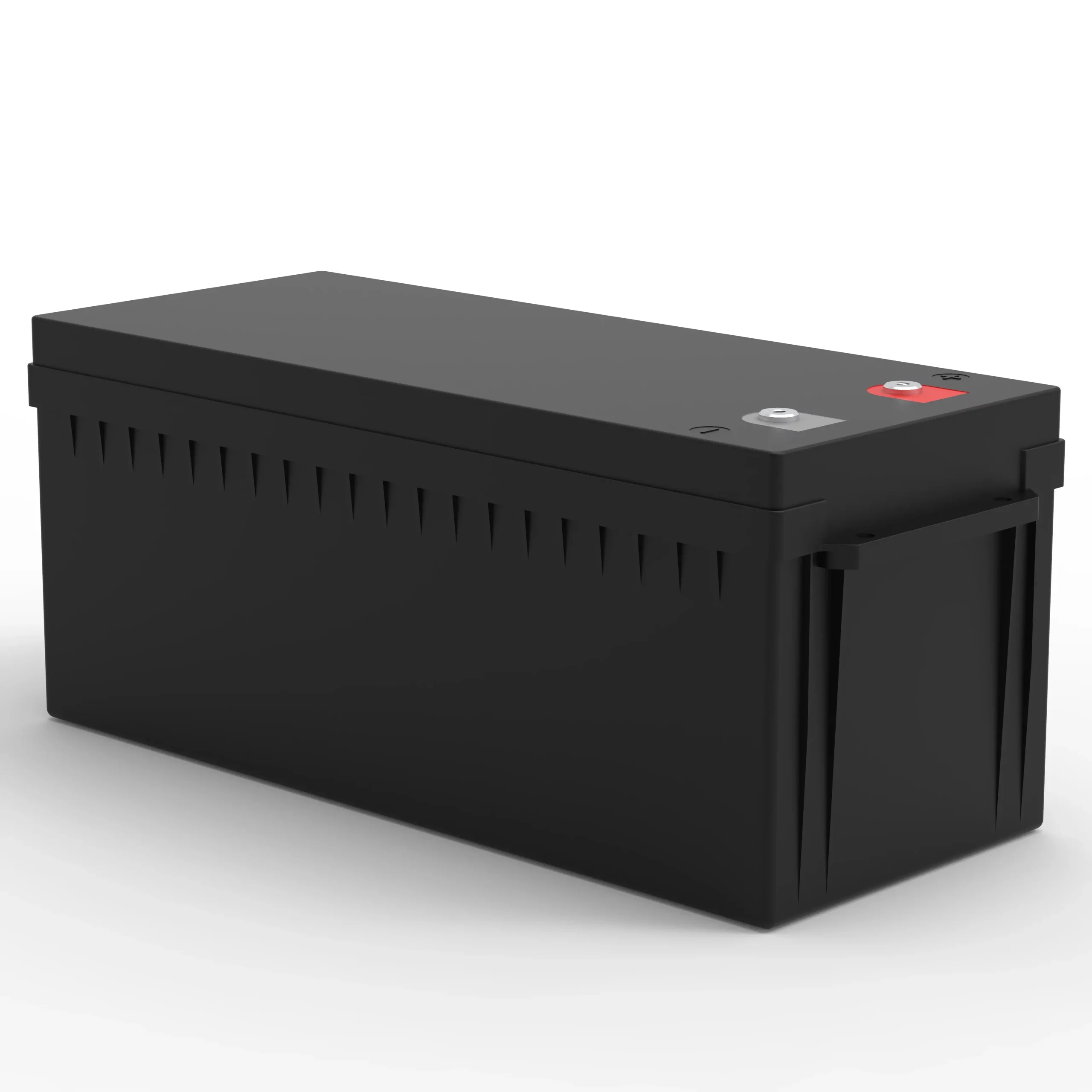

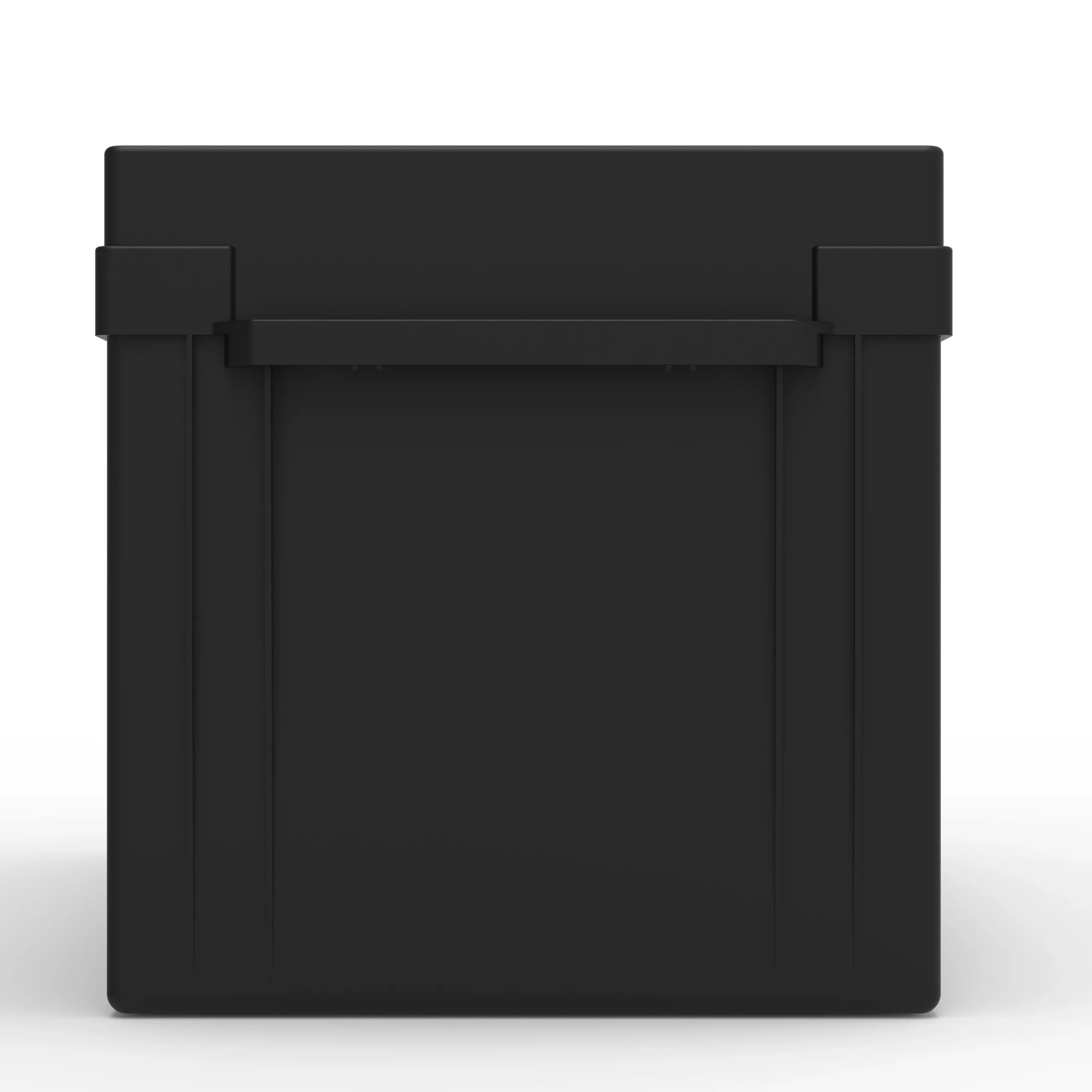

| YY12150P | Batteries materials：Lithium iron phosphate Series parallel mode (S series, P parallel)：4S2P Nominal voltage：12.8V Nominal capacity:150Ah Size（mm）：412*451*137 Weight：18kg Color: Optional Parallel support: Parallel terminals are supported Output port mode：terminal Charging way：CC/CP/VP Charging current：0.2C(standard） Maximum charging current：Max1.2C @25℃ Charge cut-off voltage：14.6V Discharge way：CC/CP/VP Discharge current：0.5C Maximum discharge current：Max0.5C @25℃ Discharge cut-off voltage：11.2V According to：LCD Communication interface：RS485/RS232/CAN Charging operating temperature：charging:0~+50℃ Discharge operating temperature：discharge:-20~+55℃ Warranty：5 years Scope of application: hospital, bank data center, enterprise energy storage backup power supply, office, military, base station and other |
|
Description
Recommended Products
48V 200AH Wall Mount LiFePO4 Battery
YY48200HW 48V 200AH 9.60Kwh
12.8V 150AH Plastic Case LiFePO4 Battery
YY12200P 12.8V 200AH 2.56Kwh
12.8V 150AH Plastic Case LiFePO4 Battery
YY12150P 12.8V 150AH 1.92Kwh
12.8V 120AH Plastic Case LiFePO4 Battery
YY12120P 12.8V 120AH 1.54Kwh
12.8V 100AH Plastic Case LiFePO4 Battery
YY12100P 12.8V 100AH 1.28Kwh
12.8V 80AH Plastic Case LiFePO4 Battery
YY1280P 12.8V 80AH 1.02Kwh
12.8V 38AH Plastic Case LiFePO4 Battery
YY1238P 12.8V 38AH 0.49Kwh
12.8V 17AH Plastic Case LiFePO4 Battery
YY1217P 12.8V 17AH 0.22Kwh
12.8V 9AH Plastic Case LiFePO4 Battery
YY1209P 12.8V 9AH 0.12Kwh
51.2V 140AH Wall Mount LiFePO4 Battery
YY48140HW-2 51.2V 140AH 0.73Kwh BYD Blade Cell Inside
Providing one-stop lithium-ion battery products and customized services from lithium battery cells, packs
10 + years
R&D and Manufacturing Experience
50000 + families
Service Projects
100 + countries
Exported Countries and Regions
6000 ㎡
R&D and Manufacturing Base
