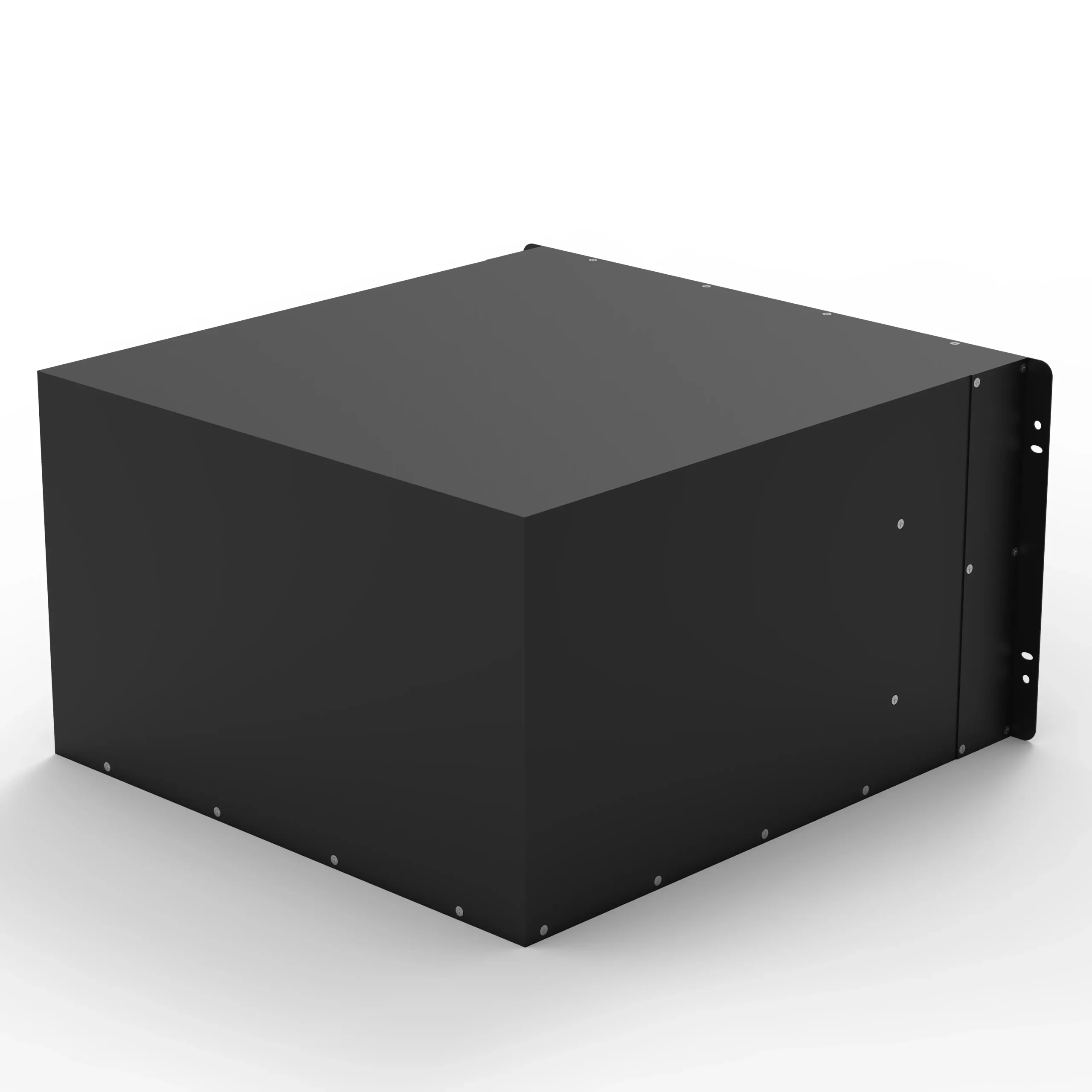

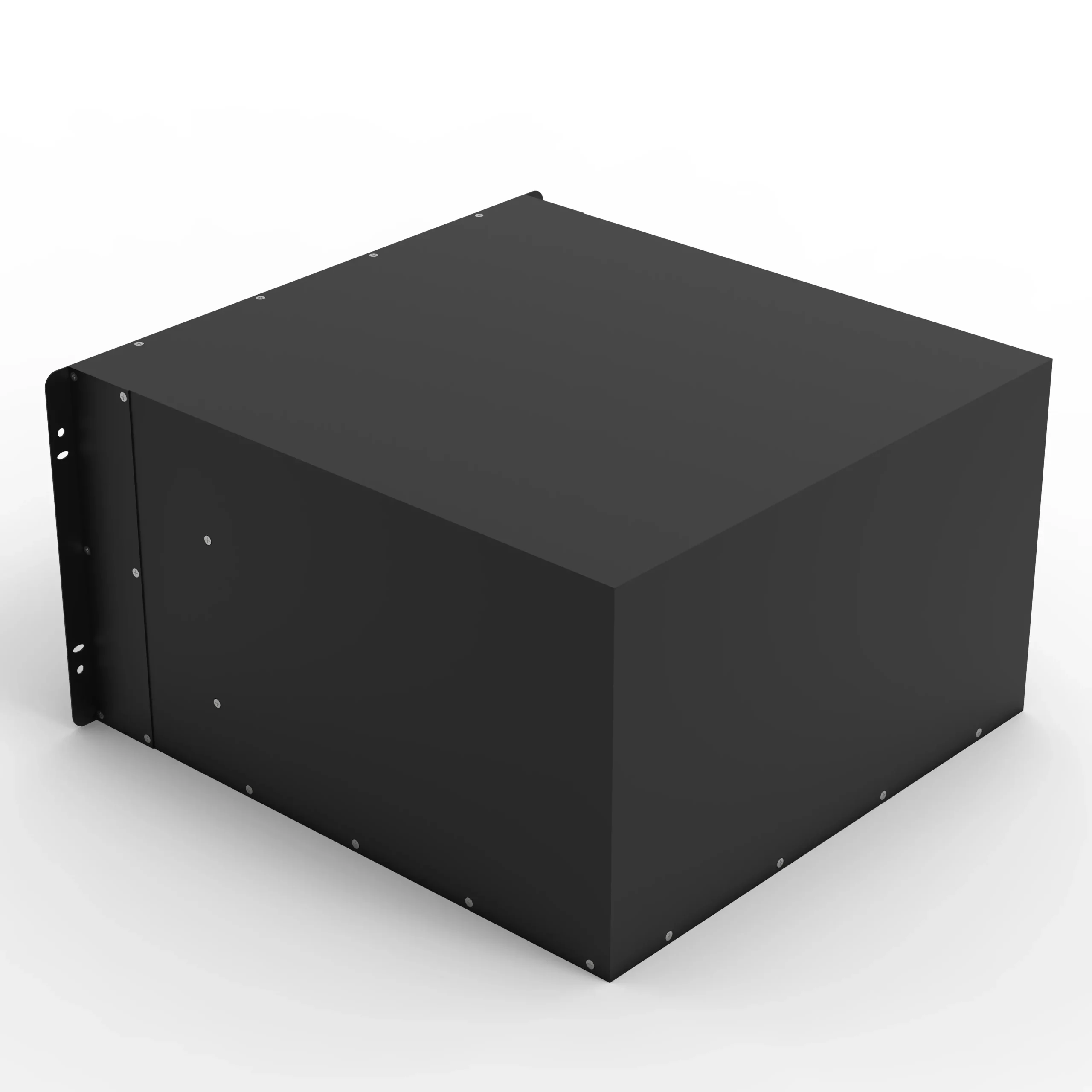

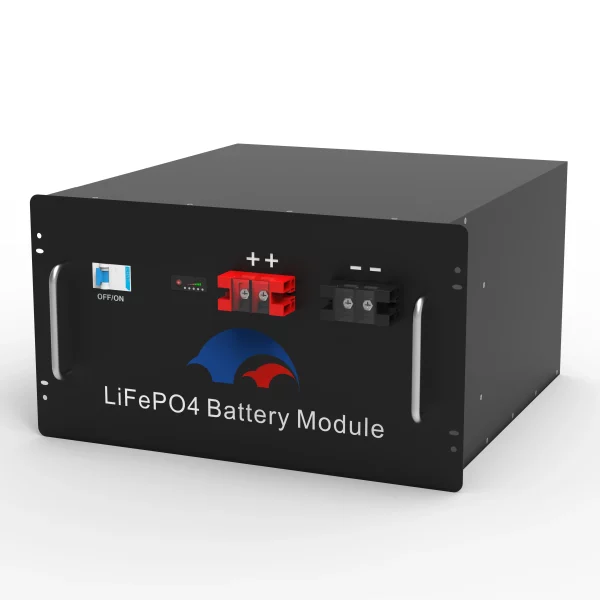

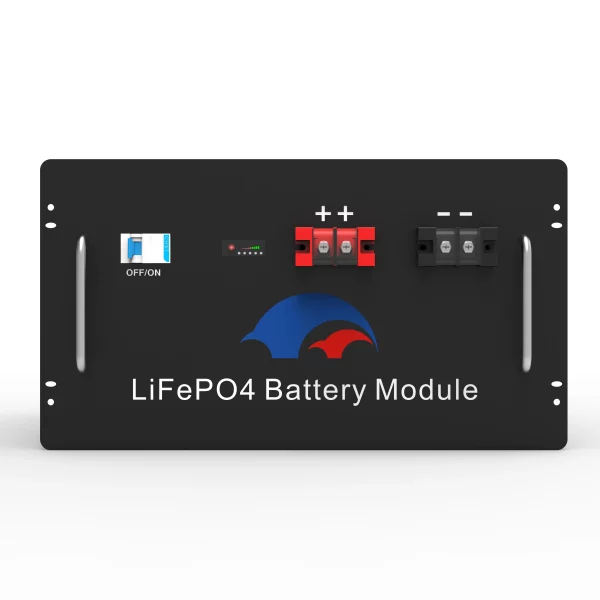

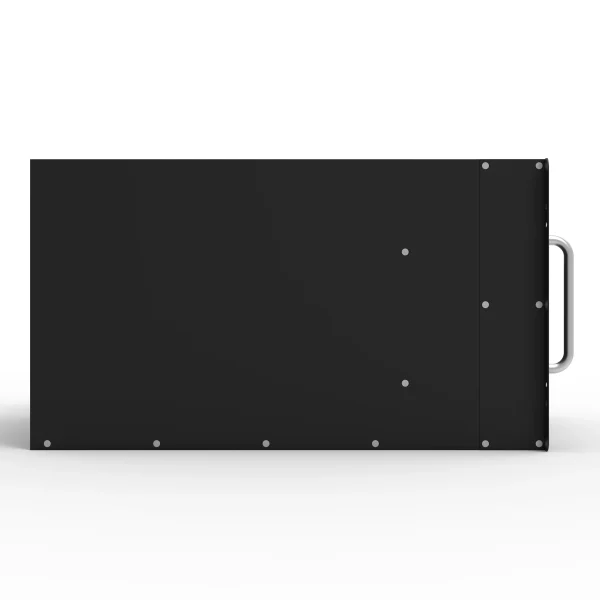

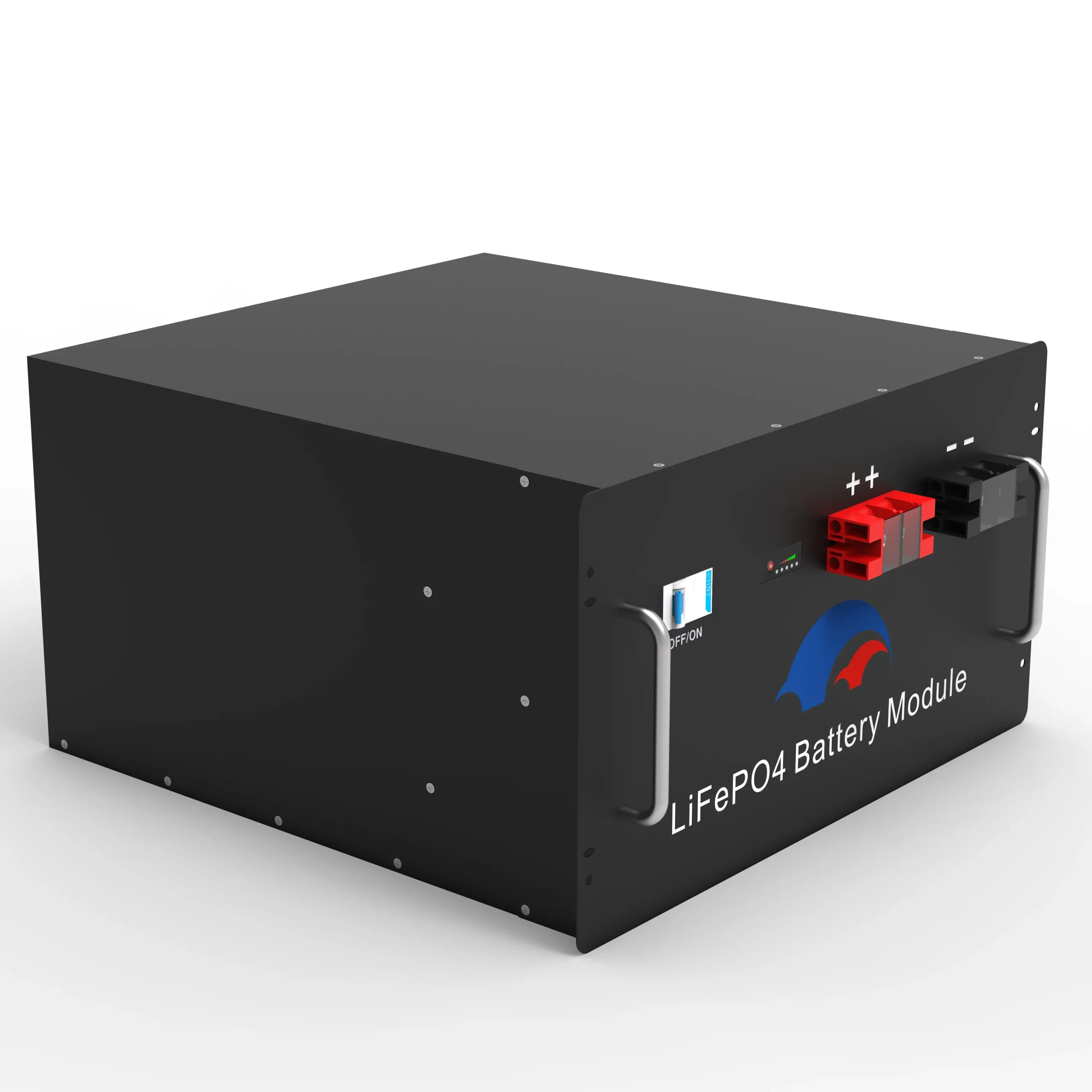

25.6V 200AH Rack Mount LiFePO4 Battery

YY24200LR 25.6V 200AH 5.12Kwh

Share to:

Description

Model NO. Product Parameters
YY24200LR Batteries materials:Lithium iron phosphate
Series parallel mode (S series, P parallel):8S2P
Nominal voltage:25.6V
Nominal capacity:200Ah
Size(mm):471*484*266
Weight:67kg
Color: Optional
Parallel support: Parallel terminals are supported
Output port mode:terminal
Charging way:CC/CP/VP
Charging current:0.2C(standard)
Maximum charging current:Max1.2C @25℃
Charge cut-off voltage:29.2
Discharge way:CC/CP/VP
Discharge current:0.5C
Maximum discharge current:Max0.5C @25℃
Discharge cut-off voltage:22.4V
According to:LCD
Communication interface:RS485/RS232/CAN
Charging operating temperature:charging:0~+50℃
Discharge operating temperature:discharge:-20~+55℃
Warranty:5 years
Scope of application: hospital, bank data center, wall-mounted home,
enterprise energy storage backup power supply, wind complementary system,
office, military, base station and other uninterrupted energy storage power supply.
