| Model NO. | Product Parameters | |

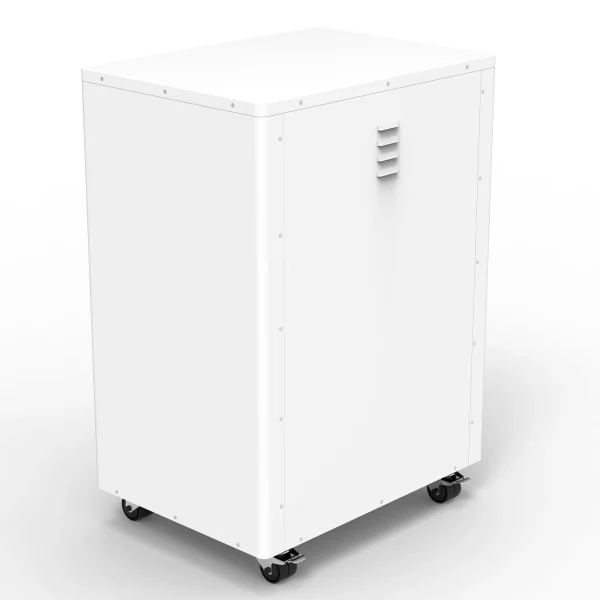

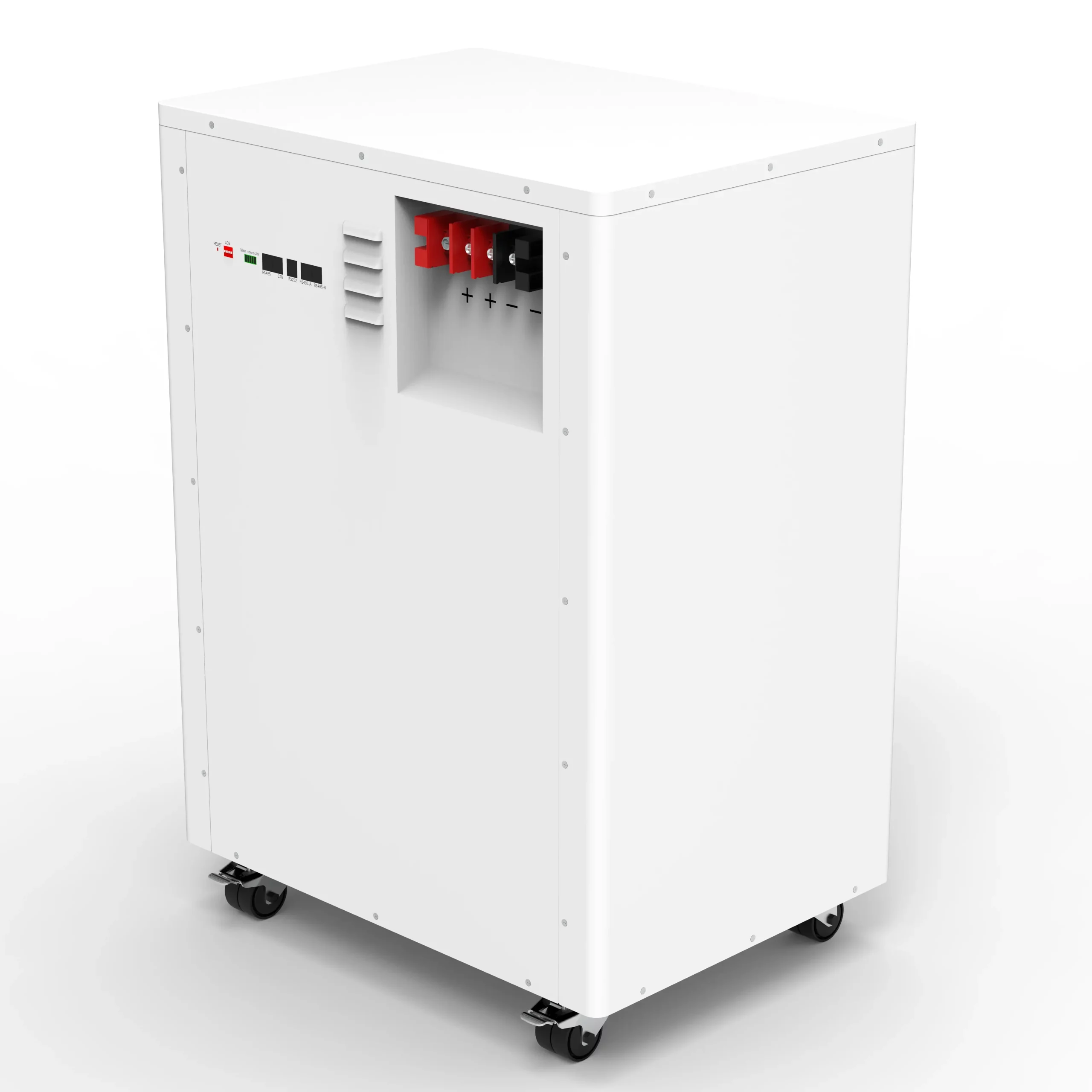

| YY-48200 | Batteries materials：Lithium iron phosphate Series parallel mode (S series, P parallel)：16S1P Nominal voltage：51.2V Nominal capacity:200AH Size（mm）：570*420*740 Weight：150KG Color: Optional Parallel support: Parallel terminals are supported Output port mode：terminal Charging way：CC/CP/VP Charging current：0.2C(standard） Maximum charging current：Max0.5C @25℃ Charge cut-off voltage：58.4V/CELL Discharge way：CC/CP/VP Discharge current：0.5C Maximum discharge current：Max0.6C @25℃ Discharge cut-off voltage：44.8V According to：LCD Communication interface：RS485/RS232/CAN Charging operating temperature：charging:0~+50℃ Discharge operating temperature：discharge:-20~+55℃ Warranty：5 years Scope of application: hospital, bank data center, enterprise energy storage backup power supply, office, military, base station and other |
|
Description
